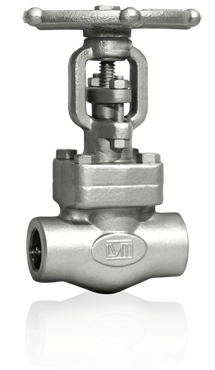

Gate valve


Our gate valves are of manifold tunrnings. The pitch orifice is locked by a solid leantsurfaced wedge between the supports.
Suitable for opening or locking duties, but inappropriate for flow cheeking; straight pitch with minimal load decrease.

Super temperament contrast color silk scarf small square replica handbags uk, showing the feminine elegance and gucci replica , red and white, hermes replica , fashionable and handbags replica, the body is very white, the biggest highlight is the silk on the strap Towels can be used for a replica handbags .

Use: General duties, resins, oil and gas, steam and fluids of different levels of viscosity.

NCM (HSC) 8481.80.93
Product specification

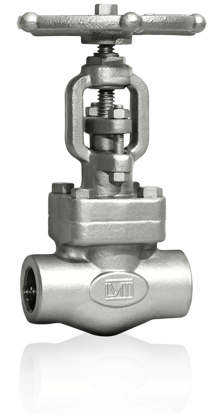

Globe valve


Our globe valves are of manifold turnings. Locking occurs by means of a conical disc which obtrudes the fluid flowing through the support.
Suitable for checking duties. Liquid or gaseous flow. Moderate load decrease.

Use: General duties, liquid, steam and gas.

NCM (HSC) 8481.80.94
Product specification

Needle valve


Our needle valves are of manifold turnings. Locking occurs by means of a conical disc in the valve rod. Which obtrudes the fluid flowing through the pitch orifice.
Suitable for a fine checking of fluids; high load decrease.

Use: General duties, liquid, steam and gas.

NCM (HSC) 8481.80.979
Product specification

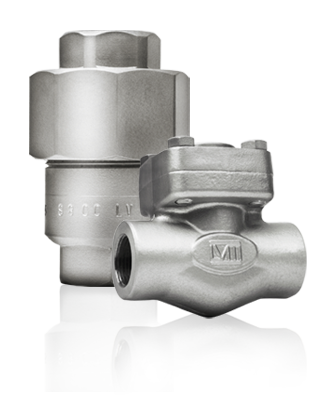

Check valve


Our check valves are automatic valves, independent of external control, and operate according to the flow or preassure direction in the pipe system.
Our check valves include ball, piston and swing types, which allow fluid flowing in a only direction.

Horizontal - ball or piston: Set only a horizontal position. Moderate load decrease.
Lid-top: Set either horizontally or vertically. Very low load decrease.
Vertical - ball: Set only vertically. Moderate load decrease.

Use: Resins, oil, steam and fluids of different levels of viscosity. Inappropriate for drygas dealing.

NCM (HSC) 8481.30.00
Product specification

Technical especifications


Pressure and temperature regime

In the following tables you will be able to check the working pressure and temperature conditions of our products. In case of any concerns the technical department will be at your disposition and will assist and guide you for the correct use and determination of the different materials.

Pressure regime - Temperature (MPa - oC)
  • Temp. Class 150 Class 300 Class 600
    A-105
    A-350 LF2
    A-182 A-105
    A350 LF2
    A-182 A-105
    A350 LF2
    A-182
    F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L
    oC MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa
    -29 a 38 1.96 1.9 2.0 1.98 1.59 5.11 5.17 5.1 5.17 4.14 10.21 10.34 10.3 10.34 8.27
    50 1.92 1.95 1.95 1.95 1.53 5.01 5.15 5.17 5.17 4.00 10.02 10.30 10.3 10.34 8.00
    100 1.77 1.77 1.77 1.77 1.33 4.66 5.04 5.15 5.15 3.48 9.32 10.09 10.3 10.30 6.96
    150 1.58 1.58 1.58 1.58 1.20 4.51 4.82 5.03 4.97 3.14 9.02 9.64 10.0 9.95 6.28
    200 1.38 1.38 1.38 1.38 1.12 4.38 4.63 4.86 4.80 2.92 8.76 9.25 9.72 9.59 5.83
    250 1.21 1.21 1.21 1.21 1.05 4.19 4.48 4.63 4.63 2.75 8.39 8.96 9.27 9.27 5.49
    300 1.02 1.02 1.02 1.02 1.00 3.98 4.29 4.29 4.29 2.61 7.96 8.57 8.57 8.57 5.21
    325 0.93 0.93 0.93 0.93 0.93 3.87 4.14 4.14 4.14 2.55 7.74 8.26 8.26 8.26 5.10
    350 0.84 0.84 0.84 0.84 0.84 3.76 4.03 4.03 4.03 2.51 7.51 8.04 8.04 8.04 5.01
    375 0.74 0.74 0.74 0.74 0.74 3.64 3.89 3.89 3.89 2.48 7.27 7.76 7.76 7.76 4.95
    400 0.65 0.65 0.65 0.65 0.65 3.47 3.65 3.65 3.65 2.43 6.94 7.33 7.33 7.33 4.86
    425 0.55 0.55 0.55 0.55 0.55 2.88 3.52 3.52 3.52 2.39 5.75 7.00 7.00 7.00 4.77
    450 0.46 0.46 0.46 0.46 0.46 2.30 3.37 3.37 3.37 2.34 4.60 6.77 6.77 6.77 4.68
    475 0.37 0.37 0.37 0.37 ??/td> 1.74 2.79 3.17 3.17 ??/td> 3.49 5.57 6.34 6.34 ??/td>
    500 0.28 0.28 0.28 0.28 ??/td> 1.18 2.14 2.82 2.57 ??/td> 2.35 4.28 5.65 5.15 ??/td>
    538 0.14 0.14 0.14 0.14 ??/td> 0.59 1.37 1.75 1.49 ??/td> 1.18 2.74 3.50 2.98 ??/td>
    550 ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 1.20 1.50 1.27 ??/td> ??/td> 2.41 3.00 2.54 ??/td>
    575 ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 0.88 1.05 0.88 ??/td> ??/td> 1.76 2.09 1.76 ??/td>
    600 ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 0.61 0.72 0.61 ??/td> ??/td> 1.21 1.44 1.22 ??/td>
    625 ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 0.40 0.50 0.43 ??/td> ??/td> 0.80 0.99 0.85 ??/td>
    650 ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 0.24 0.35 0.28 ??/td> ??/td> 0.47 0.71 0.57 ??/td>
  • Temp. Class 600 Class 1500 Class 2500
    A-105
    A-350 LF2
    A-182 A-105
    A350 LF2
    A-182 A-105
    A350 LF2
    A-182
    F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L
    oC MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa MPa
    -29 a 38 13.62 13.79 13.79 13.79 11.03 25.53 25.86 25.86 25.86 20.68 42.55 43.09 43.09 43.09 34.47
    50 13.37 13.73 13.79 13.79 10.67 25.06 25.75 25.86 25.86 20.01 41.77 42.92 43.09 43.09 33.35
    100 12.43 13.45 13.74 13.73 9.28 23.30 25.22 25.76 25.74 17.39 38.83 42.04 42.94 42.90 28.99
    150 12.02 12.85 13.38 13.26 8.37 22.54 24.09 25.08 24.87 15.70 37.56 40.15 41.82 41.45 26.16
    200 11.68 12.34 12.96 12.79 7.78 21.90 23.13 24.34 23.98 14.58 36.50 38.56 40.54 39.96 24.30
    250 11.18 11.95 12.36 12.36 7.32 20.97 22.41 23.18 23.18 13.73 34.95 37.35 38.62 38.62 22.89
    300 10.62 11.43 11.43 11.43 6.95 19.91 21.44 21.44 21.44 13.03 33.18 35.71 35.71 35.71 21.72
    325 10.32 11.02 11.02 11.02 6.79 19.36 20.66 20.66 20.66 12.74 32.26 34.43 34.43 34.43 21.23
    350 10.02 10.73 10.73 10.73 6.68 18.78 20.11 20.11 20.11 12.54 31.30 33.53 33.53 33.53 20.89
    375 9.70 10.35 10.35 10.35 6.60 18.18 19.41 19.41 19.41 12.38 30.31 32.32 32.32 32.32 20.63
    400 9.26 9.76 9.76 9.76 6.48 17.36 18.31 18.31 18.31 12.15 28.93 30.49 30.49 30.49 20.25
    425 7.67 9.34 9.34 9.34 6.36 14.38 17.51 17.51 17.51 11.93 23.97 29.16 29.16 29.16 19.88
    450 6.13 9.02 9.02 9.02 6.24 11.50 16.90 16.90 16.90 11.71 19.17 28.18 28.18 28.18 19.51
    475 4.65 7.43 8.45 8.45 ??/td> 8.72 13.93 15.82 15.82 ??/td> 14.53 23.21 26.39 26.39 ??/td>
    500 3.14 5.70 7.53 6.86 ??/td> 5.88 10.69 14.09 12.86 ??/td> 9.79 17.82 23.50 21.44 ??/td>
    538 1.57 3.65 4.67 3.97 ??/td> 2.95 6.86 8.75 7.45 ??/td> 4.92 11.43/td> 14.58 12.41 ??/td>
    550 ??/td> 3.21 4.00 3.39 ??/td> ??/td> 6.02 7.50 6.35 ??/td> ??/td> 10.04 12.50 10.59 ??/td>
    575 ??/td> 2.35 2.79 2.35 ??/td> ??/td> 4.40 5.23 4.40 ??/td> ??/td> 7.34 8.71 7.34 ??/td>
    600 ??/td> 1.62 1.91 1.63 ??/td> ??/td> 3.03 3.59 3.05 ??/td> ??/td> 5.04 5.98 5.09 ??/td>
    625 ??/td> 1.07 1.32 1.14 ??/td> ??/td> 2.00 2.48 2.13 ??/td> ??/td> 3.33 4.14 3.55 ??/td>
    650 ??/td> 0.63 0.94 0.76 ??/td> ??/td> 1.18 1.77 1.42 ??/td> ??/td> 1.97 2.95 2.36 ??/td>

1 MPa = 10 bar = 10.2 Kg/cm2

Pressure regime - Temperature (PSI - oF)
  • Temp. Class 150 Class 300 Class 600
    A-105
    A-350 LF2
    A-182 A-105
    A350 LF2
    A-182 A-105
    A350 LF2
    A-182
    F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L
    oF PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI
    -20 to 100 285 290 290 290 230 740 750 750 750 600 1480 1500 1500 1500 1200
    200 260 260 260 260 195 680 735 750 750 510 1360 1470 1500 1500 1020
    300 230 230 230 230 175 655 700 730 720 455 1310 1400 1455 1445 910
    400 200 200 200 200 160 635 670 705 695 420 1265 1335 1410 1385 840
    500 170 170 170 170 150 605 645 665 665 395 1205 1290 1330 1330 785
    600 140 140 140 140 140 570 605 605 605 370 1135 1210 1210 1210 745
    650 125 125 125 125 125 550 590 590 590 365 1100 1175 1175 1175 730
    700 110 110 110 110 110 530 570 570 570 360 1060 1135 1135 1135 720
    750 95 95 95 95 110 505 530 530 530 355 1015 1065 1065 1065 705
    800 80 80 80 80 80 410 510 510 510 345 825 1015 1015 1015 690
    850 65 65 65 65 65 320 485 485 485 340 640 975 975 975 675
    900 50 50 50 50 ??/td> 230 375 450 450 ??/td> 460 745 900 900 ??/td>
    950 35 35 35 35 ??/td> 135 275 375 320 ??/td> 275 550 755 640 ??/td>
    1000 20 20 20 20 ??/td> 85 200 255 215 ??/td> 170 400 505 430 ??/td>
    1050 ??/td> 20 20 20 ??/td> ??/td> 145 170 145 ??/td> ??/td> 290 345 290 ??/td>
    1100 ??/td> 20 20 20 ??/td> ??/td> 95 115 95 ??/td> ??/td> 190 225 190 ??/td>
    1150 ??/td> 20 20 20 ??/td> ??/td> 60 75 65 ??/td> ??/td> 125 150 130 ??/td>
    1200 ??/td> 15 20 15 ??/td> ??/td> 35 50 40 ??/td> ??/td> 70 105 80 ??/td>
  • Temp. Class 600 Class 1500 Class 2500
    A-105
    A-350 LF2
    A-182 A-105
    A350 LF2
    A-182 A-105
    A350 LF2
    A-182
    F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L F-5 F-9 F-11 cl.2 F-316L
    oF PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI
    -20 to 100 1975 2000 2000 2000 1600 3705 3750 3750 3750 3000 6170 6250 6250 6250 5000
    200 1810 1965 2000 2000 1365 3395 3680 3750 3750 2555 5655 6135 6250 6250 4260
    300 1745 1865 1940 1925 1215 3270 3495 3640 3610 2280 5450 5830 6070 6015 3800
    400 1690 1780 1880 1850 1120 3170 3345 3530 3465 2100 5280 5570 5880 5775 3500
    500 1610 1725 1775 1775 1050 3015 3230 3325 3325 1970 5025 5385 5540 5540 3280
    600 1515 1615 1615 1615 990 2840 3025 3025 3025 1860 4730 5040 5040 5040 3100
    650 1465 1570 1570 1570 975 2745 2940 2940 2940 1825 4575 4905 4905 4905 3040
    700 1415 1515 1515 1515 960 2665 2840 2840 2840 1800 4425 4730 4730 4730 3000
    750 1350 1420 1420 1420 940 2535 2660 2660 2660 1765 4230 4430 4430 4430 2940
    800 1100 1355 1355 1355 920 2055 2540 2540 2540 1730 3430 4230 4230 4230 2880
    850 850 1300 1300 1300 900 1595 2435 2435 2435 1690 2655 4060 4060 4060 2820
    900 615 995 1200 1200 ??/td> 1150 1870 2245 2245 ??/td> 1915 3115 3745 3745 ??/td>
    950 365 735 100 850 ??/td> 685 1370 1885 1595 ??/td> 1145 2285 3145 2655 ??/td>
    1000 225 530 675 575 ??/td> 430 995 1270 1080 ??/td> 715 1655 2115 1800 ??/td>
    1050 ??/td> 385 460 385 ??/td> ??/td> 720 855 720 ??/td> ??/td> 1200 1430 1200 ??/td>
    1100 ??/td> 255 300 255 ??/td> ??/td> 480 565 480 ??/td> ??/td> 800 945 800 ??/td>
    115 ??/td> 165 200 175 ??/td> ??/td> 310 375 325 ??/td> ??/td> 515 630 545 ??/td>
    1200 ??/td> 95 140 110 ??/td> ??/td> 170 255 205 ??/td> ??/td> 285 430 345 ??/td>
  • Pressure temperature rating conform to ANSI B 16.34, API 602.
  • Temperature limitations:
  • A-105: Permissible but not recommended for prolonged use above about 800 °F. Only killed steel shall be used above 850 °F.
  • A-350 LF2: Permissible but not recommended for prolonged use above about 800 °F.
  • A-182 F11 cl.2: Permissible but not recommended for prolonged use above about 1100 °F.
  • Bolting, gasket and packing materials, also influence temperature limitations.
  • Valves with teflon gasket and packing are limited to 500 °F max.

Materials

Forged steel valves, carbon steel and alloy.

Materials specification.
  •   Designation ASTM Body and Bonnet
    A-105 A-350 LF2 cl. 1 ASTM A-182
    F-5 F-9 F-11 cl. 2 F-316L
    Chemical
    Composition
    Carbono - C % 0.35 máx. 0.30 máx. 0.15 máx. 0.15 máx 0.10-0.20 0.030 máx.
    Manganeso - Mn % 0.60-1.05 0.60-1.35 0.30-0.60 0.30-0.60 0.30-0.80 2.00 máx.
    Fósforo - P máx. % 0.035 0.035 0.030 0.030 0.040 0.045
    Azufre - S máx. % 0.040 0.040 0.030 0.030 0.040 0.030
    Silicio - Si % 0.10-0.35 0.15-0.30 0.50 máx. 0.50-1.00 0.50-1.00 1.00 máx.
    Níquel ??Ni % 0.40 máx.(a) 0.40 máx.(a) 0.50 máx. ??/td> ??/td> 10.0-15.0
    Cromo ??Cr % 0.30 máx.(a, b) 0.30 máx.(a, b) 4.0-6.0 8.0-10.0 1.00-1.50 16.0-18.0
    Molibdeno - Mo % 0.12 máx.(a, b) 0.12 máx.(a, b) 0.44-0.65 0.90-1.10 0.44-0.65 2.00-3.00
    Cobre ??Cu % 0.40 (a) 0.40 (a) ??/td> ??/td> ??/td> ??/td>
    Niobio ??Nb máx. % ??/td> 0.02 ??/td> ??/td> ??/td> ??/td>
    Vanadio - V máx. % 0.08 máx.(a) 0.08 máx.(a) ??/td> ??/td> ??/td> ??/td>
    Mechanical
    Properties
    Tensile strength MPa
    Ksi
    485 mín.
    70 min.
    485-655 mín.
    70-95 mín.
    485 mín.
    70 min.
    585 mín.
    85 min.
    485 mín.
    70 min.
    485 mín.
    70 min.
    Yield strength mín. MPa
    min. Ksi
    250
    36
    250
    36
    275
    40
    380
    55
    275
    40
    170
    25
    Elongation (in 2?? mín. % 22 22 20 20 20 30
    Reduction of area min. % 30 30 35 40 30 50
    Hardness Brinell 187 máx. 197 máx. 143-217 179-217 143-207 ??/td>
  •   Designation ASTM Bolts and Nuts
    ASTM 193 ASTM 194
    B7 B8M cl. 1 B16 B6 2H 8M 8
    Chemical
    Composition
    Carbono - C % 0.37-0.49 0.08 máx. 0.36-0.47 0.08-0.15 0.40 mín. 0.08 máx. 0.08
    Manganeso - Mn % 0.65-1.10 2.00 máx. 0.45-0.70 1.00 máx. 1.00 máx. 2.00 máx. 2.00 máx.
    Fósforo - P máx. % 0.035 0.045 0.035 0.040 0.040 0.045 0.045
    Azufre - S máx. % 0.040 0.030 0.040 0.030 0.050 0.030 0.030
    Silicio - Si % 0.15-0.35 1.00 máx. 0.15-0.35 1.00 máx. 0.40 máx. 1.00 máx. 1.00 máx.
    Níquel ??Ni % ??/td> 10.0-14.0 ??/td> ??/td> ??/td> 10.0-14.0 8.00-11.0
    Cromo ??Cr % 0.75-1.20 16.0-18.0 0.80-1.15 11.5-13.5 ??/td> 6.0-18.0 18.0-20.0
    Molibdeno - Mo % 0.15-0.25 2.00-3.00 0.50-0.65 ??/td> ??/td> 2.00-3.00 ??/td>
    Cobre ??Cu % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td>
    Niobio ??Nb máx. % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td>
    Vanadio - V máx. % ??/td> ??/td> 0.25-0.35 ??/td> ??/td> ??/td> ??/td>
    Mechanical
    Properties
    Tensile strength MPa
    Ksi
    860 mín.
    125 min.
    515 mín.
    75 min.
    860 mín.
    125 min.
    760 mín.
    110 min.
    ??/td> ??/td> ??/td>
    Yield strength mín. MPa
    min. Ksi
    720
    105
    205
    30
    725 mín.
    105 min.
    585
    85
    ??/td> ??/td> ??/td>
    Elongation (in 2?? min. % 16 30 18 15 ??/td> ??/td> ??/td>
    Reduction of area min. % 50 50 50 50 ??/td> ??/td> ??/td>
    Hardness Brinell 321 máx. 223 máx. 321 máx. ??/td> 248-327 126-300 126-300
Trim, chemical composition.
Designation ASTM A-276 / A-479 A-582 A-217 A-351 B-164 Stellite Gr. 6
Gr. 410 Gr. 420 Gr. 440C Gr. 316 Gr. 416 Gr. CA15 Gr. CF8M monel
Carbono ??C % 0.08 ??0.15 0.15 min. 0.95 ??1.20 0.08 màx. 0.15 màx. 0.15 máx. 0.08 máx. 0.30 máx. 1.1
Manganeso ??Mn máx. % 1.00 1.00 1.00 2.00 1.25 1.00 1.50 2.00 ??/td>
Fósforo ??P máx. % 0.040 0.040 0.040 0.045 0.060 0.040 0.040 ??/td> ??/td>
Azufre ??S máx. % 0.030 0.030 0.030 0.030 0.15 mín. 0.040 0.040 0.024 -
Silicio ??Si máx. % 1.00 1.00 1.00 1.00 1.00 1.50 1.50 0.50 ??/td>
Cromo ??Cr % 11.5??3.5 12.0??4.0 16.0??8.0 16.0??8.0 12.0??4.0 11.5-14.0 18.0-21.0 ?? 28.0
Níquiel ??Ni % ??/td> ??/td> ??/td> 10.0??4.0 ??/td> 1.00 máx. 9.0-12.0 63.0 mín. ??/td>
Molibdeno ??Mo % ??/td> ??/td> 0.75 máx 2.0??.0 ??/td> 0.50 máx. 2.0-3.0 ??/td> ??/td>
Wolframio ??W % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 4.0
Cobalto ??Co % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> Resto
Cobre ??Cu % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> 28.0??4.0 ??/td>
Other % ??/td> ??/td> ??/td> ??/td> ??/td> ??/td> - Fe: 2.5 máx. ??/td>
Standard and optional materials.
Parts
Valve type
Body and Bonnet Stem Seeal Disc, Piston,
swing or Wedge
Ball Spiral Wound Gasket Flat Metal Gasket Packing
Gate and Globe A-350 LF2
A-105
A-182 F5
A-182 F9
A-182 F11
A-182 F316L
Gr. 410
Gr. 316
B-164
Gr. 410
Gr. 410 + HF
Gr. 316
Gr. 316 + HF
B-164
Gr. 410
Gr. 410 + HF
Gr. 316
Gr. 316 + HF
B-164
??/td> 316/Grafito
316/PTFE
Monel/PTFE
Monel/Grafito
??/td> Grafito PTFE
Horizontal Check A-350 LF2
A-105
A-182 F5
A-182 F9
A-182 F11
A-182 F316L
??/td> Gr. 410 Gr.
410 + HF
Gr. 316
Gr. 316 + HF
B-164
Gr. 410 Gr.
410 + HF
Gr. 316
Gr. 316 + HF
B-164
Gr. 420/440 C
Gr. 316
B-164
316/Grafito
316/PTFE
Monel/PTFE
Monel/Grafito
??/td> ??/td>
Check swing type A-350 LF2
A-105
A-182 F5
A-182 F9
A-182 F11
A-182 F316L
??/td> Gr. 410
Gr. 410 + HF
Gr. 316
Gr. 316 + HF
B-164
Gr. 410
Gr. 410 + HF
Gr. 316
Gr. 316 + HF
B-164
?? 316/Grafito
316/PTFE
Monel/PTFE
Monel/Grafito
??/td> ??/td>
Vertical Check A-350 LF2
A-105
A-182 F316L
??/td> Gr. 410
Gr. 410 + HF
Gr. 316
Gr. 316 + HF
B-164
??/td> Gr. 420/440 C
Gr. 316
B-164
??/td> Cobre
Gr. 316
??/td>
Needle A-350 LF2
A-105
A-182 F316L
Gr. 420
Gr. 420 + HF
Gr. 316
Gr. 316 + HF
Integral ??/td> ??/td> ??/td> Cobre
Gr. 316
Grafito PTFE

HF: Hard face with stellite No 6 or similar.


Inches conversion table

Meet the conversion to inches of our valves in the table below:

Measurement valves
In inches In milimeters
¼6.350
3/89.525
½12.700
3/419.050
125.400
31.750
38.100
250.800
